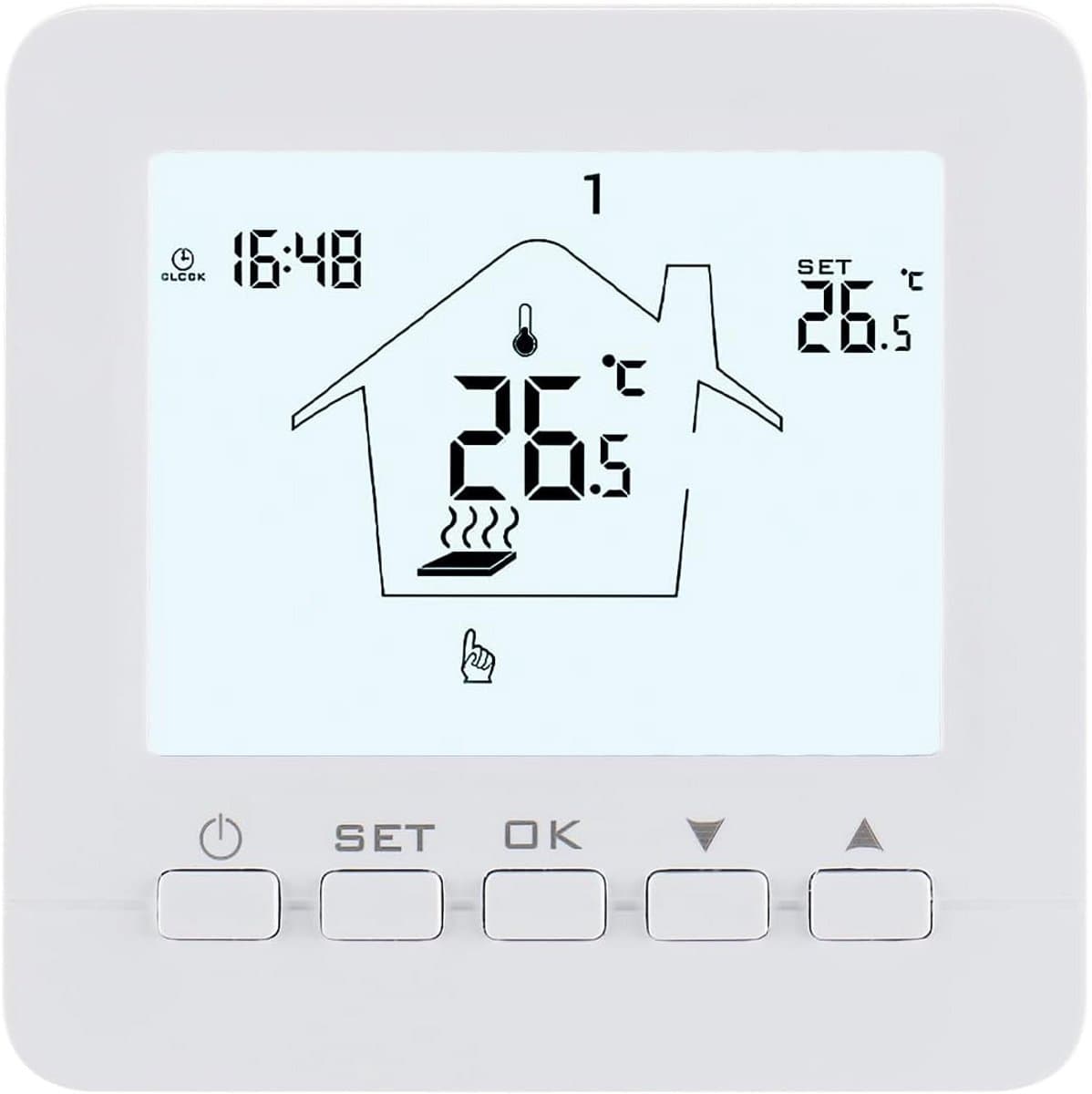

Wengart heating thermostats WG02B05, 7-day programmable LCD display touch screen AC230V Max3A work for underfloor heating white backlight

Wengart Weekly circulation digital programmable thermostat has 6 events per day, provide energy-saving and comfortable living environment, easy to install and convenient to use. This touchscreen thermostat is heating-specific, multifunctional and has a large LCD display. Manual mode and program mode can be selected. Backlight for easy visibility. Depending on the result of comparing the indoor temperature with the set temperature, it controls the start and stop of the heating equipment by relay to achieve constant indoor temperature and energy saving. Suitable for 86*86mm or European 60mm round box. Specification: Working Voltage: AC90~240V 50/60Hz Power Consumption: 2W Setting range: 5~70℃ (can adjust to 20-70℃) Switch differential: 0.5~5°C adjustable (factory setting±1°C) Ambient temperature: -5~50°C Ambient temperature display accuracy: ±0.5°C Temperature control accuracy: ±0.5°C Measured range: 1~70°C Button: Capactive Touch Button Indoor sensor: NTC 10k @ 25°C Protective Case: IP20 Housing Material: Anti-flammable PC Wiring Terminal: One terminal can be connected to 2 * 1.5 mm2 or 1 * 2.5 mm2 wire maximum Package Contents: 1 x Thermostat, 2 x Screws, 1 x Manual Dimensions: 86mm×86mm×27mm Output: Switch Relay Weight: 234 g Installation hole spacing: 60mm Installation method: wall mounted Notes: 1.Due to the different monitor and light effect, the actual color of the item may differ slightly from the colour shown in the pictures. Thanks! 2.Please allow 1-4 cm measurement error due to manual measurement.
