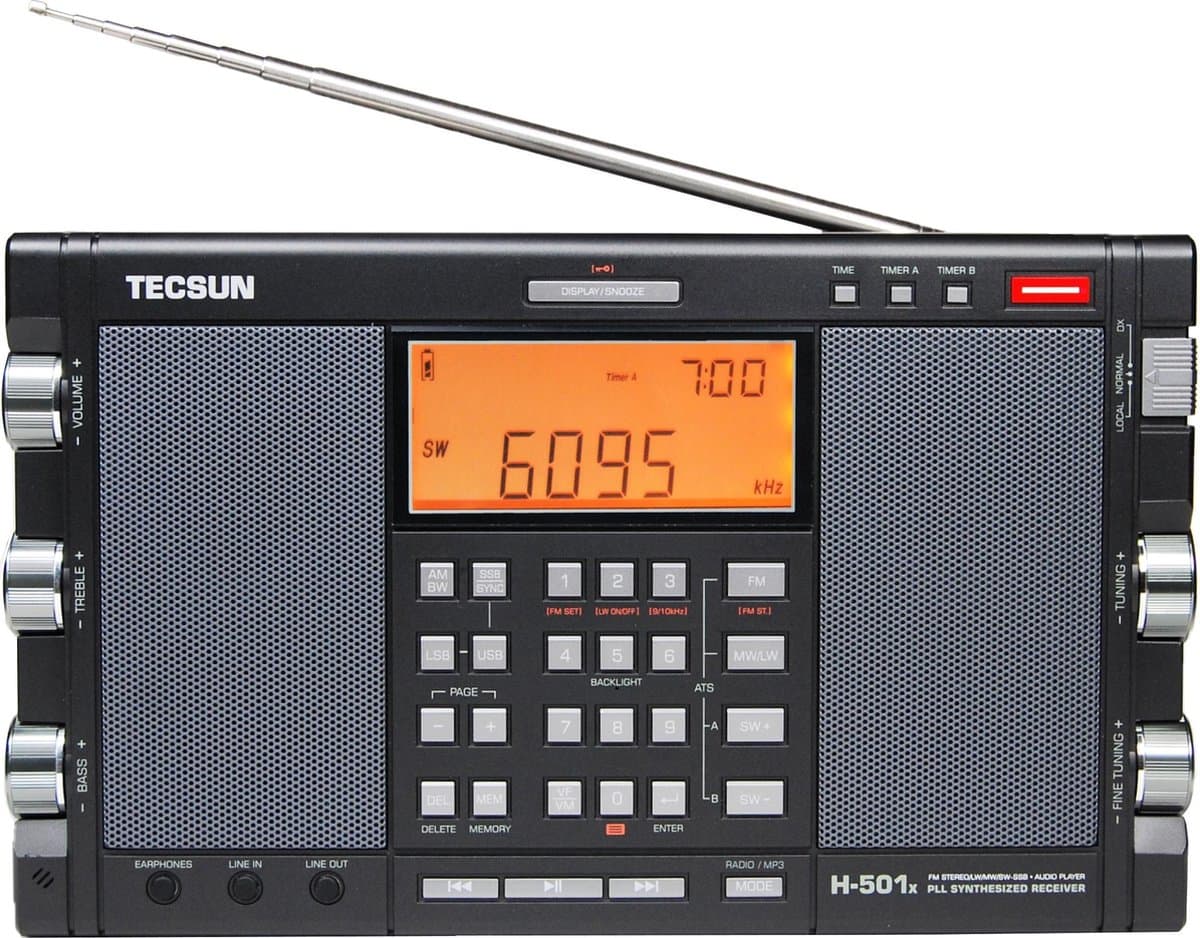

Tecsun H-501x PLL World Band Receiver/Audio Player

De nieuwe Tecsun H-501x is het nieuwe topmodel van Tecsun in hun toch al uitstekende reeks high-end World Receivers.De 'x'-versie is de enige Europese CE (RED)-goedgekeurde versie met de juiste Europese frequenties en 9/10 kHz-stap voor Amerikaanse frequenties.

Belangrijkste kenmerken:

• Speciale afstem- en fijnafstemmingsknoppen

• Bas- en treble-regelknoppen
• 9/10 kHz stap
• Automatisch afstemmende opslag (ATS) (Auto Tuning Storage)
• Automatische scanfunctie
• Synchrone detectiefunctie
• FM stereo / mono selectie
• Audiospeler: audio afspelen, enkele track herhalen, basisbediening
• Alarmfunctie
• Snooze-functie
• Slaaptimer
• Keylock
• Stereo audio-ingang (line in)
• Stereo audio-uitgang (line-out)
• FM-antennemantel 3,5 mm
• AM-antennemantel 3,5 mm
• Oortelefoonhoes 3,5 mm
• En nog veel meer functies......

  Specificatons:

  • Frequency range and tuning steps:
    - FM: 64 – 108 MHz, 100 kHz tuning / 10 kHz fine-tuning
    - FM: 76 – 108 MHz, 100 kHz tuning / 10 kHz fine-tuning
    - FM: 87 – 108 MHz, 100 kHz tuning / 10 kHz fine-tuning
    - FM: 87.5 – 108 MHz, 50 kHz tuning / 10 kHz fine-tuning

    - LW: 50 – 522 kHz, 9 kHz tuning / 1 kHz fine-tuning
    - LW: 100 – 519 kHz, 9 kHz tuning / 1 kHz fine-tuning

    - MW: 520 – 1710 kHz, 9 kHz tuning / 1 kHz fine-tuning
    - MW: 522 – 1620 kHz, 10 kHz tuning / 1 kHz fine-tuning

    - SW: 1621 – 29999 kHz, 5 kHz tuning / 1 kHz fine-tuning
    - SW: 1711 – 29999 kHz, 5 kHz tuning / 1 kHz fine-tuning

    When LW, MW and SW are received in SSB mode, the tuning step is 1 kHz and fine-tuning step is 10 Hz
  • 3150 station memories, divided over 25 memory pages
  • Noise limit sensitivity:
    - LW (S/N = 26dB): <3mV/m
    - MW (S/N = 26dB): <1mV/m
    - SW (S/N = 26dB): <20uV
    - FM (S/N = 30dB): <3uV
    - SSB (S/N = 10dB): <1uV
  • Selectivity:
    - LW/MW: >40dB
    - SW: >40dB
    - FM: >65dB
  • Sync detection lock range: +/- 1 kHz
  • S/N Ratio:
    - LW/MW: >40 dB
    - SW: >40 dB
    - FM: >60 dB

    - AM: 1st IF: 55.845 MHz, 2nd IF: 10.7 MHz, 3rd IF (DSP): 45 kHz
    - FM: 128 kHz


  • FM stereo xrosstalk: 33dB
  • Output power: >500mW x 2 (at 10% harmonic distortion)
  • Quiescent current:
    - MW/LW: <80mA
    - SW: <95mA
    - SSB: <95mA
    - FM: <36mA
    - Audio player: approx. 60mA
  • Shutdown current: <120uA
  • MicroSD: max 125 GB
  • Supported audio: 16bit / 44.1 kHz; FLAC / WAV / APE / WMA / MP3
  • Speakers: 6 Ohm, 2x 3 Watts
  • Headphone input: 3.5 mm / <300 Ohm
  • Power supply: 3.7V (16850 Li-ion battery) or external DC 5V
  • Charger / power: 5V / 1A, USB-B-type socket
  • Dimensions: 277x167x44 mm
  • Weight: 1.1 kg (excluding batteries)

    Package includes:
  • 1x Tecsun H-501x radio
  • 1x Tecsun EP-20 stereo earbuds
  • 1x 16 GB micro SD card
  • 2x 18650 Li-ion batteries, 2600 mAh each
  • 1x USB-B-type charging cable, (5V USB main charger not included)
  • 1x Audio cable
  • 1x Luxury leather carry case
  • 1x English user manual and quick guide
