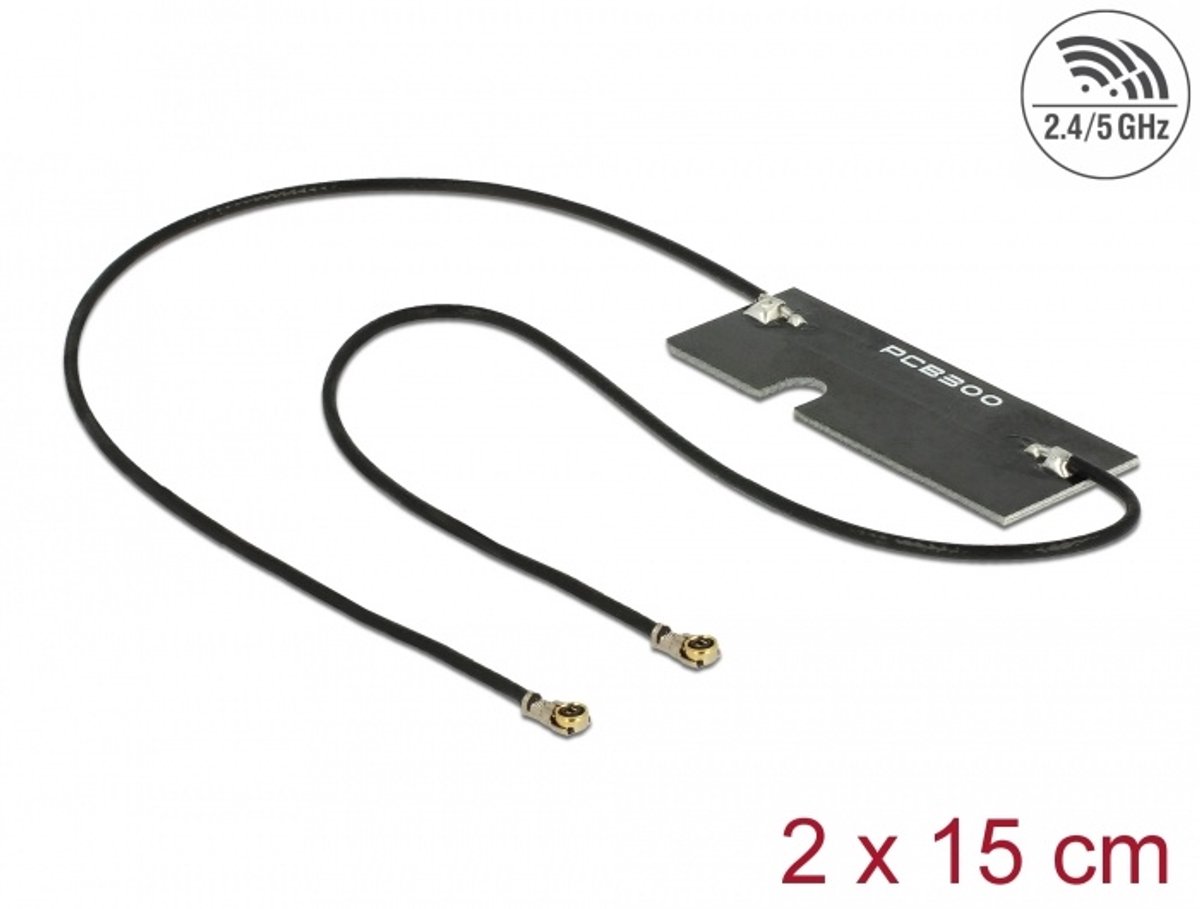

Delock WLAN 802.11 ac/a/h/b/g/n Twin Antenna 2 x I-PEX Inc., MHF® 4L plug 3 - 5 dBi 1.13 2 x 15 cm PCB internal self adhesive

This antenna by Delock allows the usage of the 2.4 GHz + 5 GHz WLAN bands indoors.

• Connector: 2 x I-PEX Inc., MHF® 4L plug
• Frequency range:
2400 - 2500 MHz
5150 - 5875 MHz
• Bluetooth, WLAN 2.4 / 5.0 GHz, ZigBee 2.4 GHz, ISM
• Antenna gain:
2400 - 2500 MHz: 3 dBi
5150 - 5875 MHz: 5 dBi
• Impedance: 50 Ohm
• VSWR: 2.0
• Polarisation: linear, vertical
• Mounting type: self adhesive
• Operating temperature: -10 °C ~ 55 °C
• Colour: black
• Cable type: coaxial
• Cable type: 1.13
• Cable colour: black
• Cable diameter: ca. 1.13 mm
• Cable attenuation: 3.2 dB @ 2.4 GHz per meter
• Smallest bending radius: 4.5 mm
• Cable length incl. connectors: 2 x ca. 15 cm
• Dimensions (LxWxH): ca. 38.20 x 13.50 x 1.60 mm

• Device with two free I-PEX Inc., MHF® 4L connectors

Package content

• Antenna
